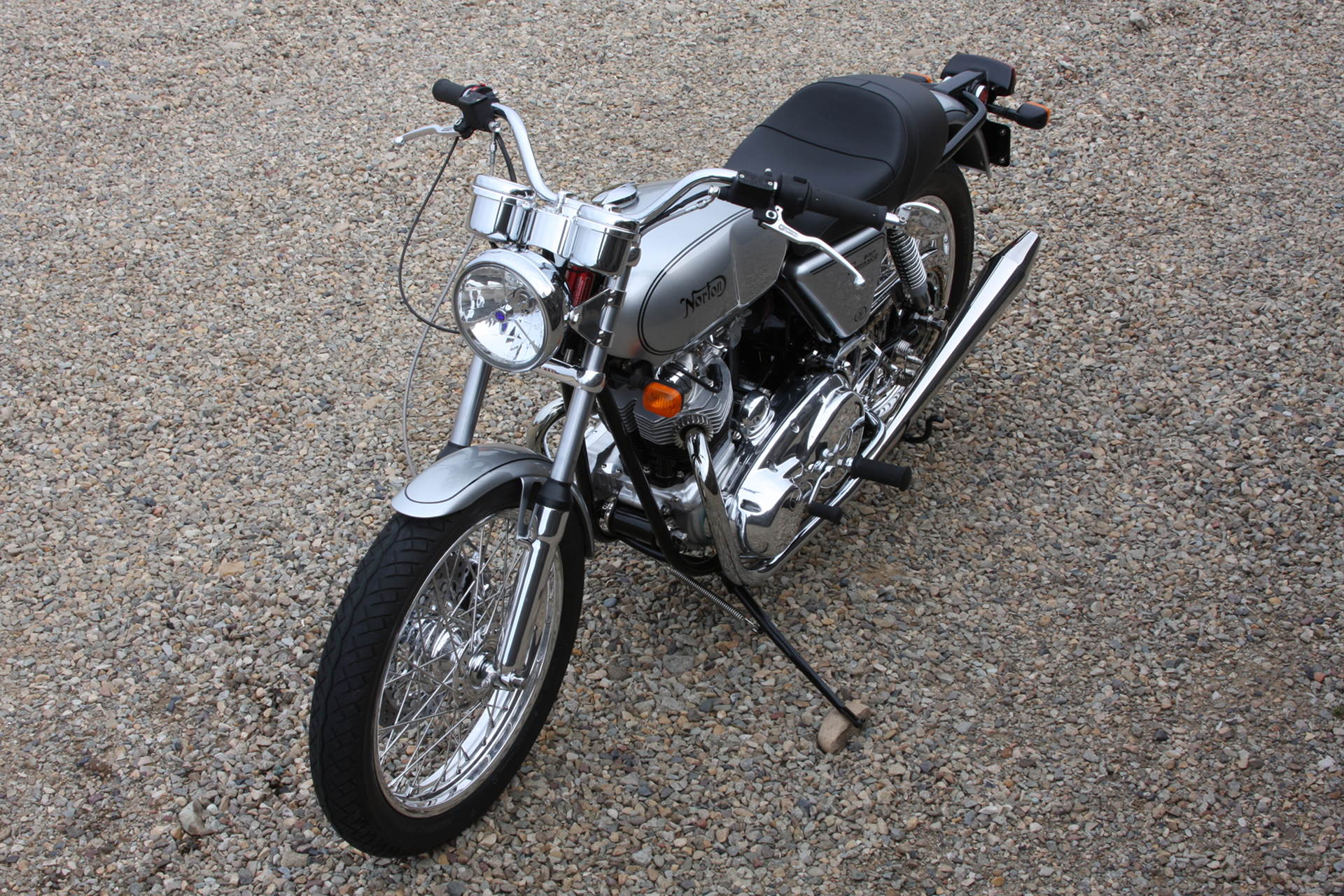

Beginning in 1967, the beautiful Norton Commando, originally with a 745cc parallel-twin air cooled engine (some larger displacement units were eventually made) became the dream bike aspired to by many motorcycle enthusiasts. The sexy women posed near, or on, Commandos in Norton magazine advertisements can still be visualized nearly half a century later by red blooded American males who have survived since that era.
Colorado Norton Works does one thing, i.e., rebuild Commandos in a painstaking, expensive process (custom rebuilds start at $32,945 … provided you supply a suitable donor bike). Of course, you end up with a Commando that is better than new.
The CNW rebuild process is so thorough, the engine rebuild alone is described in the following manner:
Head work
Standard
- New billet valve covers with stainless steel studs and hardware
- cNw/ARP special head studs
- cNw/ARP custom head hardware kit
- Head and cylinder barrel surfaced to insure flatness
- Combustion chamber volumes are equalized
- Precision 3 angle cut on valve seats
- New bronze valve guides
- New Black Diamond valves
- New valve springs and insulators
- New mushroom head tappet adjusters
- Alloy Tech push rods
- Rockers and rocker spindles replaced as required
- New rocker thrust washers and locating springs
- New cNw stainless steel exhaust nuts
- New cNw stainless steel, one piece rocker spindle covers
- Head is bead blasted, pressure washed and media tumble finished
- Braided stainless steel overhead oil lines with stainless banjos and bolts
- Improved intake valve seals
- Aluminized bronze exhaust port inserts
- New 34mm Mikuni conversion is cNw standard carburetion
Cylinder Barrel and Pistons
Standard
- Pistons, pins and rings are weighted to match within 0.0 (tenth) grams
- Barrel is surfaced for flatness
- Barrel is put through a heat cycle to stabilize metal
- Barrel is ceramic coated with a heat dissipating, high gloss, black finish
- Barrel is precision bored and honed to correct tolerance
- Cam followers/lifters are surface ground
- New pistons
- Total Seal gapless ring set
- cNw/ARP custom barrel hardware
- Special, high strength studs
Lower End
Standard
- New camshaft (several grinds available)
- New oilpump
- New billet ignition cover
- All new crankshaft hardware
- Rods are weighted to match within 0.0 (tenth) grams
- cNw/ARP crankcase hardware
- Crankshaft is magnafluxed, then ground and polished
- Rods inspected, appropriate repair of nicks, etc.
- New rod shells
- cNw breather modification
- New cam bushings as required
- Crankcase is bead blasted, pressure washed then media tumble finished
- Magnet added to sump strainer
- New Superblend main bearings installed on timing and drive side
- All crankshaft keys are replaced
- New cam chain
- New cam chain tensioner
- Upgraded tachometer drive seal installed
- Covers are polished to “show” standard
- Polished stainless timing cover hardware
Primary Case and Drive
Standard
- New belt drive (except MKIII, std chain drive)
- Hydraulic clutch conversion
- New billet outer primary cover (except MKIII, stock show polished cover)
- New Barnett steel and friction plates installed
- New hardened clutch center installed
- Clutch push rod seal by Dave Comeau installed
- New stainless steel fasteners throughout
- New stainless inspection caps
Transmission
Standard
- All new bearings
- Upgraded lay shaft bearing
- Transmission case is bead blasted, pressure washed then media tumble finished
- Gear bushings replaced as required
- New seals throughout
- New counter shaft sprocket, specific to 520 “O” ring chain
- Outer cover machined to accept MKIII kick start shaft seal upgrade
- Shift shaft o-ring replaced with seal
- Quadrant and cam plate o’rings are replaced with seals
- New shift linkage springs installed
- New MKIII kick starter arm assembly
- Covers polished to “show” standard
- All new stainless steel hardware
- New billet inspection cover
Take a look at the CNW website if you have the resources and passion to build the ultimate Norton Commando, or if you simply want to ogle the many beautiful photos of previous rebuilds performed by the company.
