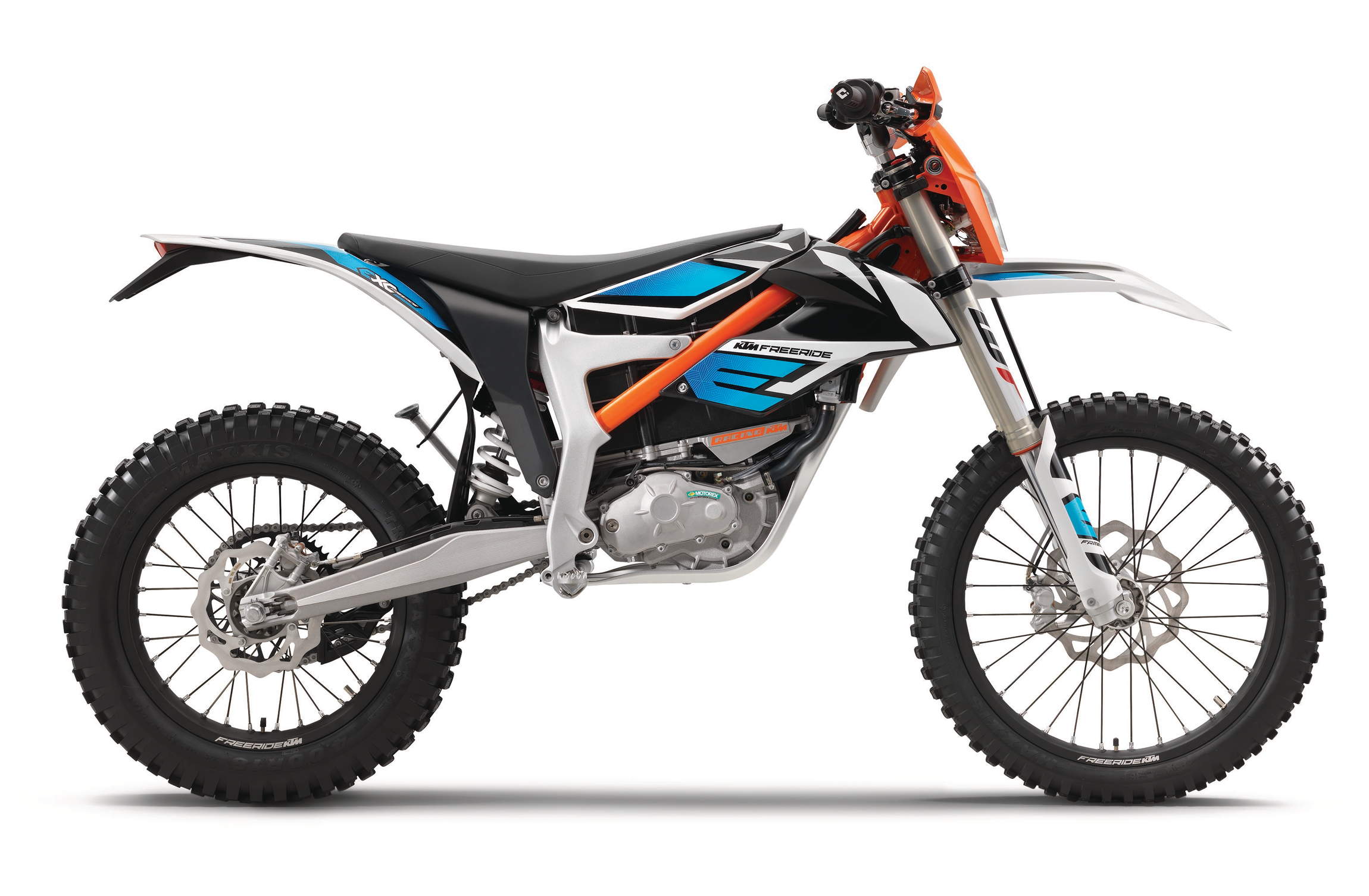

Yesterday, KTM unveiled the FREERIDE E-XC, the second generation of this model originally introduced in 2014. With more power and longer range, together with regenerative braking, the electric bike also gets changes to its chassis and suspension.
More important on a broader scale, KTM stated it is focused on an electric future and that “e-mobility will change the landscape of travel ….”
Here is a press release from KTM, together with details and specifications for this new model:
The powerful and agile KTM FREERIDE E-XC is now even better. Powered by a state-of-the-art electric motor with a peak of 18 kW fitted into a re-designed composite frame that provides even better stability, this e-machine now benefits from a 50% capacity increase in its new KTM PowerPack, which offers up to one and a half hours of riding time with just one battery charge. The new KTM FREERIDE E-XC now also utilizes energy recuperation when coasting or braking for an additional range boost, and the battery has a quick charging time, while also providing 70% of its initial capacity after 700 charge cycles. In addition, this lightweight bike boasts a new WP Xplor 43 upside-down fork system with enhanced sensitivity, and a new WP PDS Xplor shock absorber with improved progression and adjustment options.
The KTM FREERIDE E-XC features three riding modes: Economy, Enduro and Cross. Its easy operation, with no clutch or gear shift lever, and a confidence inspiring low seat height of just over 900mm, combined with its extreme cross-country agility, ensures that this is the ultimate electrically powered machine for beginners to experienced level riders. Stylish new bodywork with racy graphics, trim and colors, a new dashboard and re-positioned ignition lock provide further benefits over the previous model. Producing zero emissions and minimal noise pollution, the possibilities are endless with the ultra-playful KTM FREERIDE E-XC.
This latest e-powered machine is part of KTM’s long-term commitment to e-mobility, which began over 10 years ago in KTM’s research and development department in Mattighofen, Austria. The Austrian brand plans a range of machines for the future including e-mini, and an e-scooter, as well as maximizing its partnership with PEXCO with a new possibility to produce crossover products in the bicycle sector. The vision is clear, and by 2025 KTM will increase emphasis on machines from 250 watt to 11kWh due to market suitability and efficiency.
Stefan Pierer (KTM CEO): “We are proud to present the new KTM FREERIDE E-XC, which marks the next step in development of e-mobility within KTM and is a continuation of our commitment to this segment. We know that e-mobility will change the landscape of travel in the future, and our vision is very clear. Looking ahead to 2025 we expect to have a wider range of models available with a focus in the commuting arena. We also plan crossover machines with our collaboration with PEXCO, as well as using our e-mobility expertise in other applications.”
The new KTM FREERIDE E-XC will arrive to the North American market in limited quanities. Please stay tuned for additional information regarding the product’s availability.
2018 KTM FREERIDE E-XC HIGHLIGHTS
When it comes to offroad motorcycles, KTM has been setting the benchmark for decades as a market leader and forerunner in technology and ingenuity. Developing a motorcycle with minimal noise pollution and zero emissions is a logical step forward for KTM. Wanting to set an example for environmental-friendly offroad motorcycles, KTM introduced the FREERIDE E to Europe in 2014; a lightweight offroad bike powered by a brushless electric motor and a lithium ion battery.
For MY18 the KTM FREERIDE E-XC’s PowerPack is upgraded with a 50% increase in capacity from last year’s 2.6 kWh to a new max of 3.9 kWh. In addition the peak power output is raised by 2 kW to 18 kW. Combined with regenerative braking to charge the battery during riding, the FREERIDE E-XC’s range has grown significantly.
A reworked, lightweight offroad chassis is fitted with new, higher performing WP Xplor suspension, front and rear. A new headlight mask and front fender update the looks to match the performance. The 2018 KTM FREERIDE E-XC is an evolution in terms of motor and battery performance as well as chassis specification. It is truly a plug-in READY TO RACE KTM.
2018 KTM FREERIDE E-XC HIGHLIGHTS
- State-of-the-art brushless electric motor with increased peak power output for silent yet sporty riding with increase thermal stability.
- Latest lithium ion battery with 50% more capacity without an increase in size powers the FREERIDE E-XC up to 1.5 hours, depending on the riding style and terrain.
- Energy regeneration during coasting and braking phases adds more time on the trail.
- Reworked chassis with a longer steering head for increased stability and better tracking.
- Newly developed WP Xplor 43mm upside down forks offer 250mm of travel with excellent response and bottoming resistance.
- The WP Xplor PDS rear shock provides 260mm of travel with reduced weight and increased performance.
- Three different power modes – Economy, Enduro and Cross – allow the rider to choose the response and character of the electric motor.
- The external charger uses a 220V socket to fully charge the battery from empty in about 105 minutes. An 80% charge take around 75 minutes.
- New CNC-machined triple clamps increase the rigidity of the front end.
- The KTM FREERIDE E-XC is now fitted with Maxxis Trailmaxx tires developed specifically for the KTM FREERIDE, delivering amazing traction.
- The latest Formula brakes have been upgraded from the previous model with a 1mm increase in front brake rotor thickness, a new braided front brake hose, new rear pads and a 2mm smaller diameter rear piston for enhanced feel and more control.
- Slim and reworked bodywork for high freedom of movement features in-mold graphics along with a new headlight mask and front fender.
- No emissions and minimal noise make the FREERIDE E-XC the perfect choice for riding areas that have strict noise and emission standards.
SPECIFICATIONS
DRIVE UNIT
ELECTRIC MOTOR: Permanent magnet synchronous motor in a disc armature design
RATED OUTPUT: 9 kW (12 hp) @ 4,500 rpm
MAXIMUM POWER: 18 kW (24.5 hp) @ 5,000 rpm
TORQUE: 42 Nm (31 ft-lb) from 0 rpm
MAXIMUM MOTOR SPEED: 7,000 rpm
TRANSMISSION: 1 gear
PRIMARY DRIVE: 1:2.4
FINAL DRIVE: 11:48
COOLING SYSTEM: Liquid cooling
BATTERY: Lithium-ion KTM PowerPack (easily removable)
RATED VOLTAGE: 260V
MAXIMUM VOLTAGE: 300V
CAPACITY: 3,900 Wh
CHARGING TIME 100%: 105 min
CHARGING TIME 80%: 75 min
CHARGER LINE VOLTAGE: 230V / 50-60 Hz
CHARGING RATE: Quick charging 13 A, normal charging 10 A
CHARGING POWER: Quick charging 3,000 W, normal charging 2,300 W
CHASSIS
FRAME: Perimeter steel-aluminum composite frame
SUBFRAME: High-strength polyamide/ABS plastic
HANDLEBAR: Neken EXC Aluminum Ø 28 / 22 mm
FRONT SUSPENSION: WP Xplor 43mm split fork
REAR SUSPENSION: WP Xplor PDS shock absorber
SUSPENSION TRAVEL FRONT/REAR: 250 / 260 mm
BRAKE FRONT/REAR: Formula disc brakes Ø 260 / 230mm
WHEELS FRONT/REAR: 1.60 x 21″; 1.85 x 18″ Giant rims
TIRES FRONT/REAR: 2.75-21″ Maxxis M 7311; 4.00-18″ Maxxis Trailmaxx
CHAIN: 5/8 x 1/4″
STEERING HEAD ANGLE: 23°
WHEELBASE: 1,418±10mm / 55.8±0.4in
GROUND CLEARANCE: 340 mm / 13.4in
SEAT HEIGHT: 910 mm / 35.8in
WEIGHT READY TO RACE: 111kg / 244.7lb
